Explosion proof type indicating temperature switch_T990

Type: T990



Service intended



This temperature switch is installed with a micro contact, and it is suitable for measuring the temperature of corrosive fluid. Dead band is fixed.



Ambient temperature



-20 ~ 60 °C



Nominal diameter



125 mm



Repeatability



±1.0 % of adjustable range



Accuracy



±2.0 % of full scale



Measuring system (SAMA class ⅢB)



Organic gas : 0 ~ 200 °C
Inert gas : -200 ~ 700 °C



Working range



Maximum scale value





Standard features



Location of stem



Bottom connection, surface, Case mounting



Case



Silver gray finished aluminium



Cover



Silver gray finished aluminium



Capillary



Capillary : 1.6/0.2 mm, 316SS
Armored tube : 7.5/5.5 mm, 304SS



Switch form



Micro contact type
One SPDT or Two SPDT
One DPDT



Contact rating



■ AC 125 V/250 V, 15 A and DC 30 V, 2 A
DC 125 V, 0.5 A for resistance load
■ AC 125 V/250 V, 15 A and DC 30 V, 1 A
DC 125 V, 0.05 A for inductive load



Stem



8.0, 10.0 and 12.0 mm
316SS and 316L SS



Stem, process connection



⅜", ½", ¾" PT, NPT and PF



Optional



Special accuracy, ±1.0 % of full scale



Certificates



KCS Ex d IIB+H2 T6





Download:  CATALOG

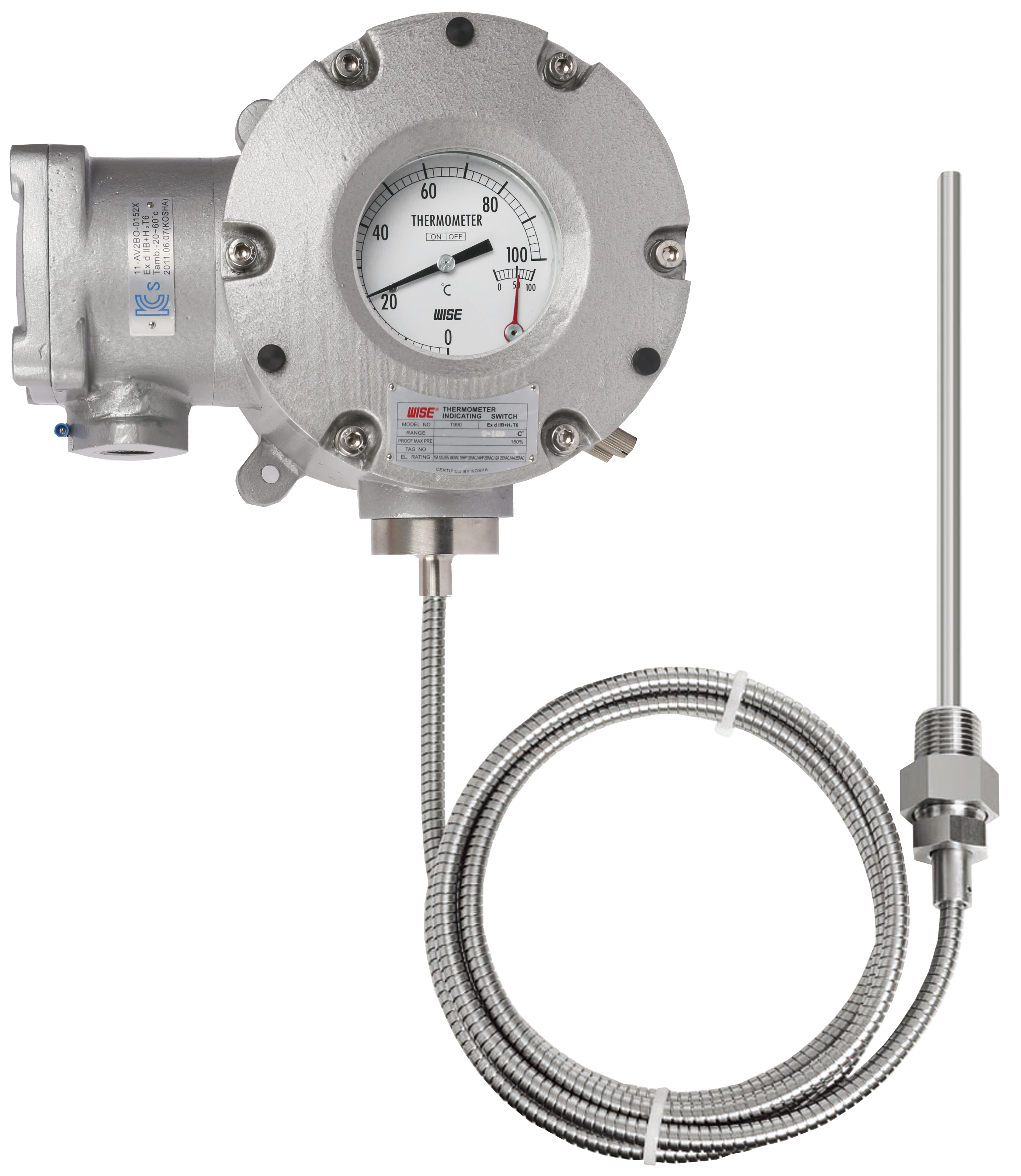

Đồng hồ nhiệt độ (Công tắc) T990 (SPDT, Explosion proof)
