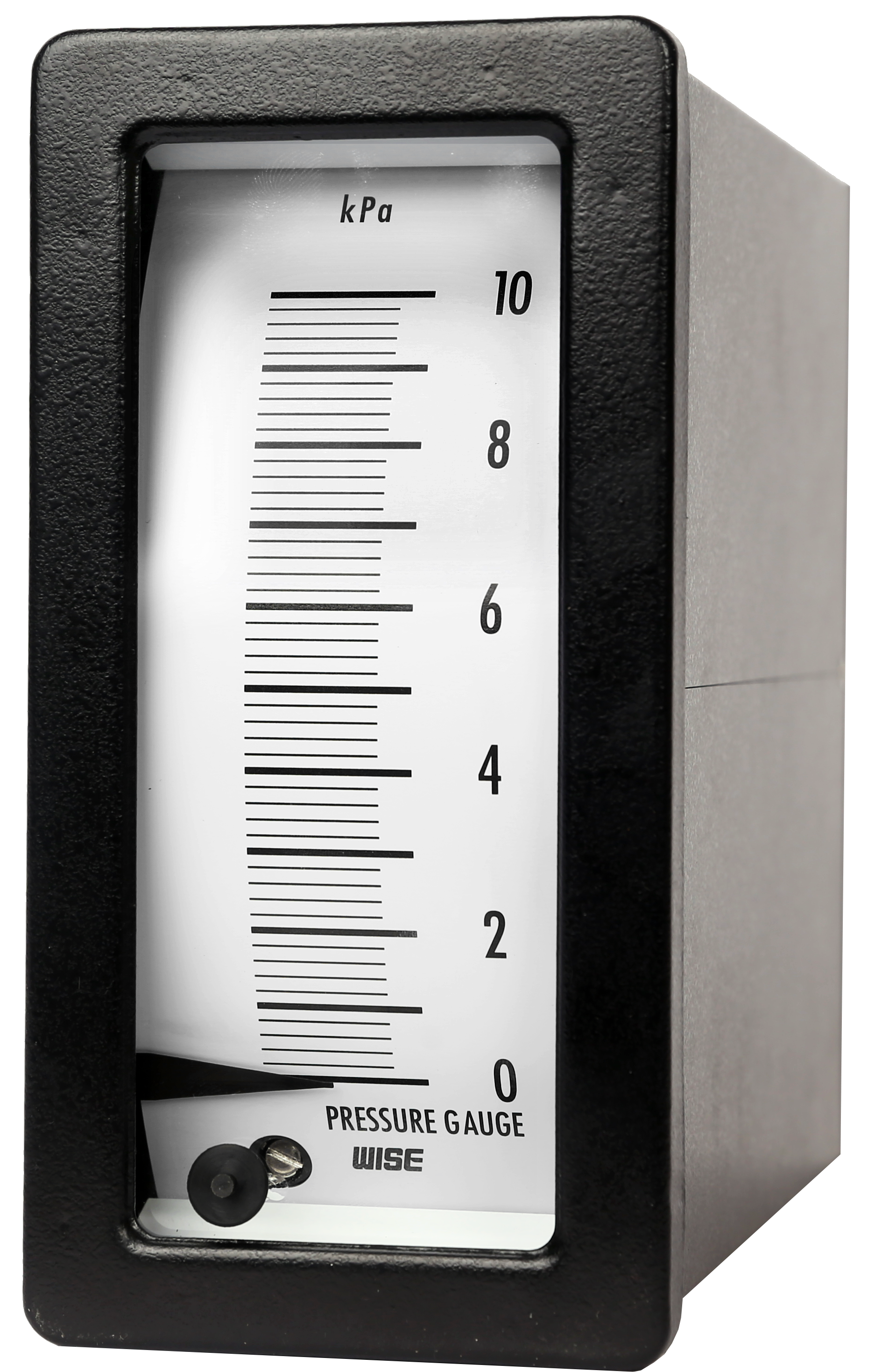

Draft gauge

Model : P410, P420 series



Service intended



P410 and P420 series are designed to measure low, vacuum or compound pressure. These series are available in panel mounting.



Nominal diameter



192 (W) x 96 mm (H) (P type)
96 (W) x 192 mm (H) (R type)



Accuracy



±2.0 or ±3.0 % of full scale



Scale range (MPa, kPa, bar)



Vacuum : -1 ~ 0 to -0.5 ~ 0 kPa
Compound : -0.2 ~ 0.2 to -5 ~ 5 kPa
Pressure : 0 ~ 0.5 to 0 ~ 10 kPa



Working pressure



Steady : 75 % of full scale
Over range protection : 130% of full scale



Working temperature



Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C



Temperature effect



Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±1.0 % per 10 ℃ of full scale




Standard features



Pressure connection



Stainless steel (316SS)



Element



Stainless steel (316L SS)



Case



Black finished steel : P410
Black finished stainless steel (304SS) : P420



Window



Safety glass



Movement



Brass



Dial



White aluminium with black graduations



Pointer



Black painted PBs2 alloy



Process connection



⅜", ½" PF, NPT and PF
