Euro gauge
Remote reading thermometer

Type: T230



Service intended



This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.



Nominal diameter



100 and 160 mm



Accuracy



±2.0 % of full scale



Measuring system (SAMA class ⅢB)



Organic gas : 0 ~ 200 °C
Inert gas : -200 ~ 700 °C



Working range



Maximum scale value



Degree of protection



EN60529/IEC529/IP67 (100 mm)





Standard features



Location of stem and mounting



Bottom connection, surface, case mounting
Lower back connection, flush, case center mounting



Case



304SS



Cover



304SS
Bayonet type



Window



Tempered safety glass



Capillary



Capillary : 1.6/0.2 mm, 316SS
Armored : 7.5/5.5 mm, 304SS



Dial



White aluminium with black graduations



Pointer



Black painted aluminium alloy



Stem



8.0, 10.0 and 12.0 mm
316SS and 316L SS



Stem, process connection



⅜", ½", ¾" PT, NPT and PF



Option



±1.0 % of full scale
Window : Safety glass
Special range : 0 ~ 700 ℃





Download:  CATALOG

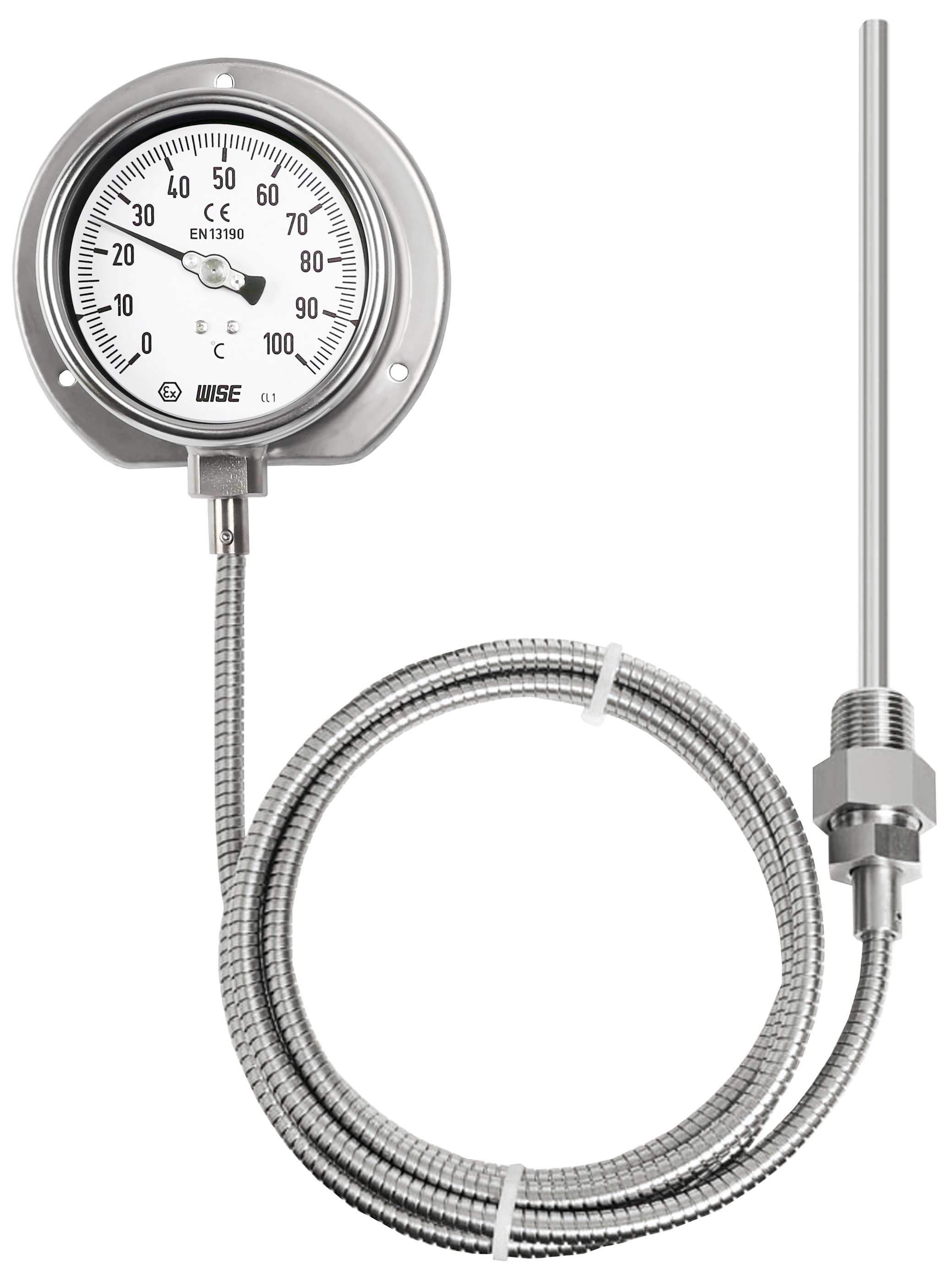

Đồng hồ nhiệt độ T230 (Euro gauge)
